What Is a Limestone Rotary Dryer Used For?
A limestone rotary dryer is industrial drying equipment used to reduce moisture in limestone before screening, grinding, storage, packing, transportation, or further processing. It is commonly used in limestone processing plants, cement-related projects, building material production, mineral powder preparation, and other industrial drying applications.
Limestone from mining, washing, outdoor storage, or transportation may contain different moisture levels. If the moisture is too high, it can cause material sticking, unstable feeding, poor screening efficiency, difficult storage, and higher transportation cost. For limestone powder production or industrial raw material preparation, moisture control is also important for stable grinding and product consistency.
A Rotary Drum Dryer is suitable for limestone drying because the rotating drum keeps the material moving while hot air removes moisture from the limestone. Compared with natural drying or batch drying methods, a rotary dryer provides a more stable and continuous process for industrial production.
At Staurk, Henan Staurk Machinery Co.,Ltd provides Drying and Calcination Equipment, Mineral Processing Equipment, and plant solutions for limestone, sand, clay, ore, mineral powder, and other industrial materials. For limestone drying projects, we focus on matching the dryer with raw material moisture, capacity, heat source, dust collection, and downstream process requirements.
How a Limestone Rotary Dryer Works
A limestone rotary dryer usually works as part of a complete limestone drying plant. The typical system may include feeding equipment, Belt Conveyor, rotary dryer, hot air furnace or burner, dust collection system, induced draft fan, discharge conveyor, and control cabinet.
Wet limestone is first sent into the dryer through a feeder or conveyor. The dryer drum is installed at a slight inclination, allowing the material to move gradually from the inlet to the outlet. As the drum rotates, internal lifting plates lift and drop the limestone repeatedly. This movement helps spread the material and improves contact between limestone particles and hot air.
The heat source provides hot air for moisture evaporation. Depending on the project site, the fuel may be coal, natural gas, diesel, biomass, or other available energy sources. During the drying process, moisture is removed from the limestone, and the dried material is discharged from the outlet.
After drying, limestone may be sent to a Vibrating Screen for size classification, to a grinding system for powder production, or to storage and packing equipment. Because dry limestone can generate dust during discharge, conveying, screening, or grinding, a suitable dust collection system should be considered from the beginning of the project.
Key Factors When Selecting a Limestone Rotary Dryer
When selecting a limestone rotary dryer, buyers should first confirm the raw material condition. Important details include initial moisture content, required final moisture, feed size, lump size, processing capacity, and downstream use. Limestone from different sources may have different particle size, hardness, and moisture levels, so the dryer should be selected based on actual project data rather than only the material name.
Capacity should also be discussed clearly. Buyers need to confirm whether the required capacity refers to wet material input or dry material output, because moisture removal changes the final production volume. Working hours per day, raw moisture range, target moisture, and downstream equipment capacity should be considered together.
The heat source is another important factor. Fuel availability, operating cost, environmental requirements, and site layout will influence the final drying solution. A stable heat supply helps keep the final moisture more consistent and supports continuous production.
Dust collection and material conveying should also be matched with the dryer. Dry limestone can produce dust during discharge, conveying, screening, or grinding. The limestone rotary dryer, Belt Conveyor, dust collector, fan, Vibrating Screen, and downstream equipment should be considered as one complete system instead of separate machines.

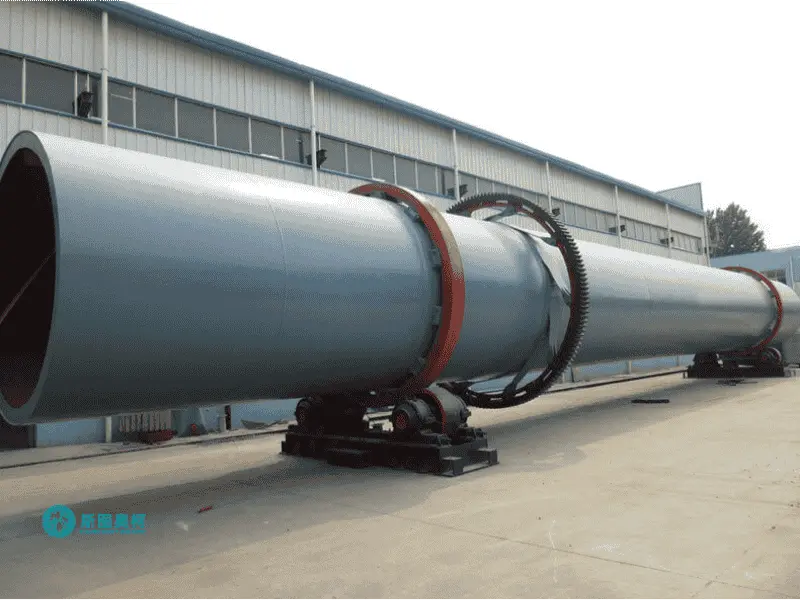

Limestone Rotary Dryer in a Drying Plant
In a complete limestone drying plant, the rotary dryer is usually installed after feeding or preliminary size preparation. If the limestone contains large lumps, crushing or screening may be required before drying to improve material flow and drying efficiency.
A common limestone drying process may include feeding, conveying, drying, dust collection, discharge, screening, storage, and packing. Not every project needs all these steps. The final configuration depends on raw material condition, required final moisture, production capacity, available heat source, site layout, and final product use.
For limestone used in construction materials, the main goal may be reducing surface moisture for easier handling and storage. For limestone powder production, stable moisture before grinding may be more important. For bagged limestone products, moisture control and dust management are usually key concerns.
This is why a limestone rotary dryer should not be selected as a single isolated machine. A well-matched drying system can help reduce fuel waste, avoid material blockage, improve final moisture stability, and support smoother downstream processing.
How Staurk Helps with Limestone Dryer Selection
Before recommending a limestone rotary dryer, Staurk usually needs to understand the raw limestone type, initial moisture content, required final moisture, feed size, lump size, processing capacity, available heat source, installation site, dust collection requirement, and downstream process.
Based on these details, Staurk can help recommend a suitable limestone rotary dryer and related equipment. Some customers may only need one dryer to upgrade an existing drying section. Other projects may require a complete limestone drying plant with feeding system, belt conveyor, hot air system, rotary dryer, dust collector, fan, screening equipment, storage silo, or packing system.
For limestone processing plants, cement-related projects, mineral processing projects, EPC contractors, and equipment distributors, this process-based selection can help avoid equipment mismatch and provide a more practical drying solution.
Conclusion
A limestone rotary dryer is used to reduce moisture and prepare limestone for screening, grinding, storage, packing, transportation, or further industrial use. It is especially useful when natural drying is unstable or when continuous production is required.
When selecting a limestone rotary dryer, buyers should consider raw moisture, final moisture, feed size, lump size, capacity, heat source, dust collection, site layout, and downstream process. Choosing only by drum size or price may lead to unstable moisture, high fuel consumption, dust problems, or poor plant matching.
If you are planning a limestone drying project, it is better to evaluate the rotary dryer as part of the complete process flow. A suitable drying system should match both the material condition and the final product requirement.
If you need a limestone rotary dryer for your drying project, Staurk can help review your requirements and recommend a practical drying solution. Please share your limestone type, initial moisture content, required final moisture, feed size, lump size, processing capacity, available heat source, installation site condition, dust collection requirement, and downstream process. Based on these details, Henan Staurk Machinery Co.,Ltd can provide a suitable limestone rotary dryer recommendation and limestone drying plant solution.
