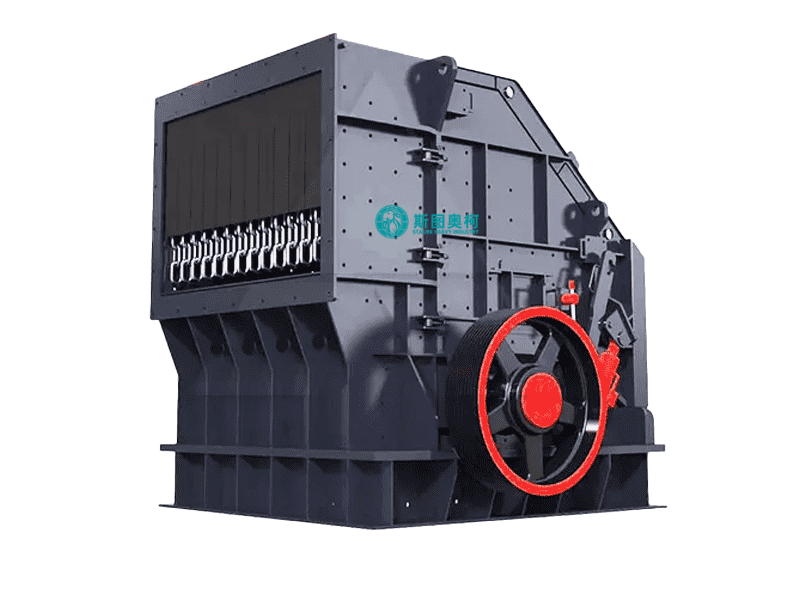

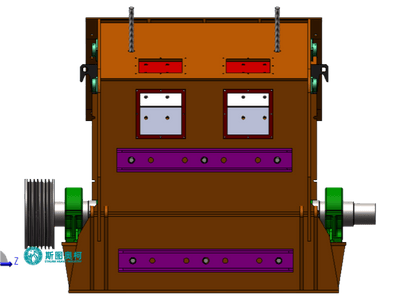

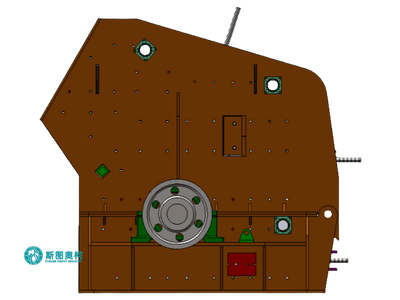

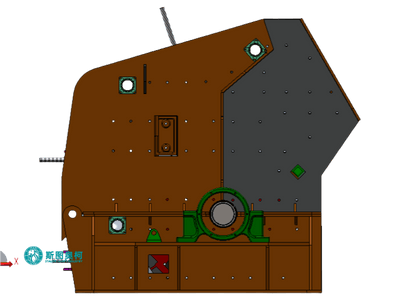

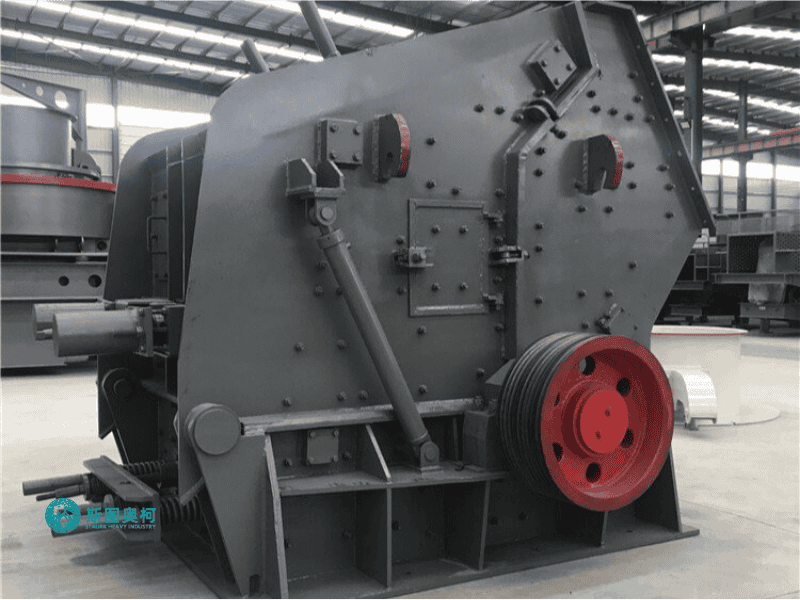

Impact Crusher
Capacity: 30-800TPH
Feeding Size: ≤700mm
Discharging Size: 20-50mm
Handling Materials: Limestone, granite, basalt, concrete, coal, construction waste, etc.
An impact crusher crushes medium-hard, brittle materials (limestone, concrete, coal) using high-speed rotor impact. It delivers uniform, cubical aggregates with adjustable output size (typically 20–50 mm). Ideal for mining, construction, and recycling due to high efficiency, simple structure, and low maintenance. Not suitable for very hard or sticky materials.
Advantages
01.
High Efficiency
Delivers powerful impact crushing with high speed rotor, reducing energy use while maximizing output for medium-hard materials.
02.
Adjustable Output
Customize particle size by simply changing rotor speed or adjusting impact plate gaps.
03.
Cubical Aggregates
Produces uniformly shaped, angular particles ideal for construction and concrete applications.
04.
Low Maintenance
Simple design with fewer wear parts reduces downtime and servicing costs.
How Does A Impact Crusher Work
1. Material Feeding: Raw materials enter the crushing chamber through the feed chute and fall onto the high-speed rotating rotor.
2. High-Velocity Impact: The rotor's hammers/blow bars violently throw materials against the impact plates, causing fractures along natural cleavage lines.
3. Controlled Fragmentation: Repeated impacts between hammers, plates and material-on-material collisions progressively reduce particle size. Adjustable clearance determines final output gradation.
4. Product Discharge: Properly sized particles exit through the bottom gap, while oversize materials continue circulating for further crushing until reaching specification.
Models
Model | Max Feed Size (mm) | Capacity (t/h) | Power (kW) | Weight (t) | Rotor Size (mm) | Application |
PF1010 | 350 | 50-80 | 55-75 | 12 | 1000x1050 | Medium crushing |
PF1210 | 400 | 70-130 | 110 | 17 | 1250x1050 | Medium to large crushing |
PF1315 | 500 | 120-250 | 200 | 19 | 1320x1500 | High-capacity crushing |
PF1520 | 700 | 300-550 | 315-400 | 30 | 1500x2000 | Mining, quarrying |
CI5X1415 | 800 | 400-800 | 400 | 28 | 1400x1500 | Aggregate production |
CI5X1620 | 1000 | 500-1000 | 500 | 35 | 1600x2000 | High-performance crushing |
