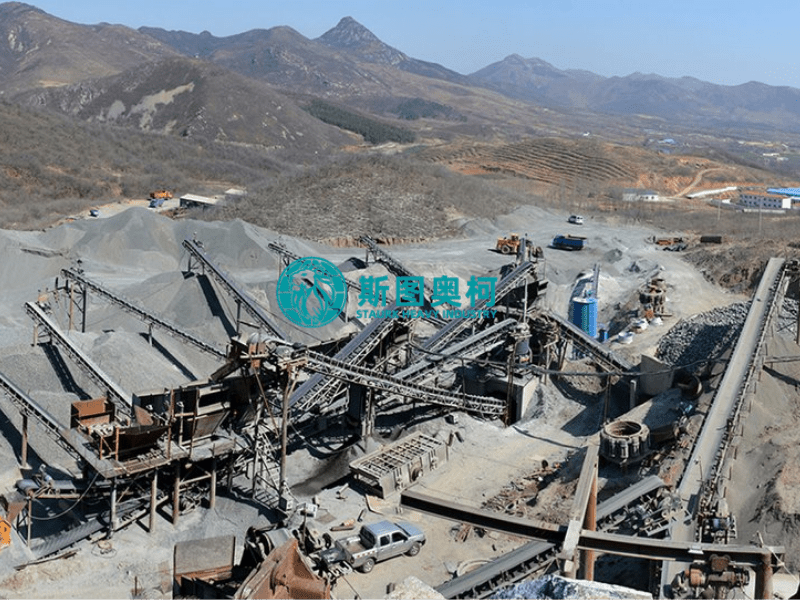

Stone crusher plant production line
Capacity: 50-3000TPH
Feeding Size: ≤1600mm
Discharging Size: 3-35mm
Handling Materials: Limestone, granite, basalt, river pebbles, concrete, waste bricks, iron ore waste rock, steel slag, etc.
Stone crusher plant production line is a specialized system of equipment designed to process large rocks or construction waste into construction-grade sand and aggregate. It serves as a vital support for infrastructure projects such as highways, railways, water conservancy, and building construction.

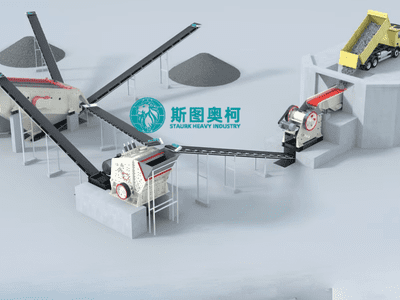

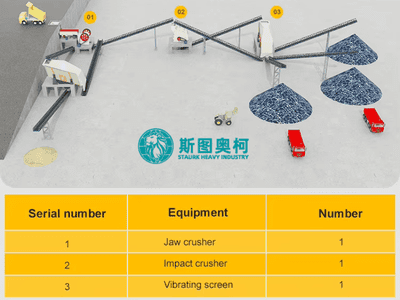

Advantages
01.
High Production Capacity
The crushing production line features a flexible design, with hourly output capacities ranging from tens to thousands of tons.
02.
Continuous Operation Capability
Seamless coordination among feeder, crushers, vibrating screen, and conveyors creates a continuous material processing flow, significantly enhancing processing efficiency per unit of time.
03.
Strong Adaptability
Capable of processing materials with varying degrees of hardness and moisture content.
04.
Optimized Closed-Loop Circuit
Employs a multi-stage crushing process—comprising primary crushing, secondary/tertiary crushing, and screening, ensuring the final product meets size specifications.

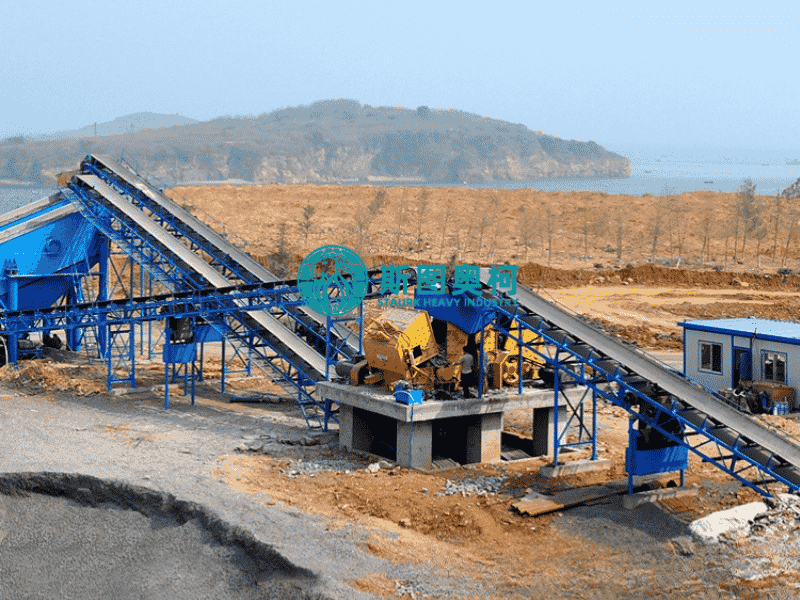

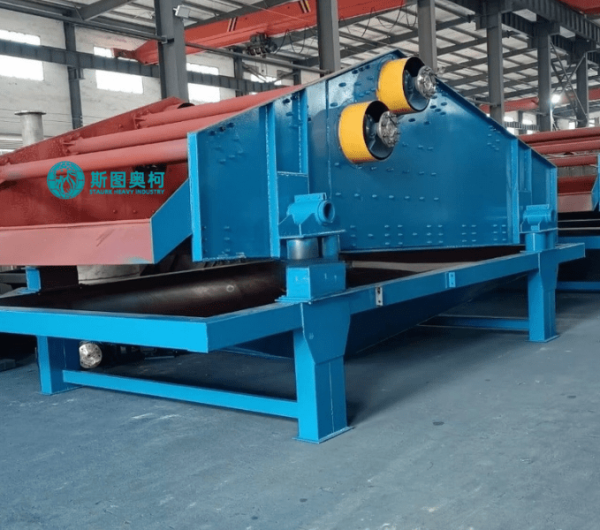

How Does A Dewater screen Work？

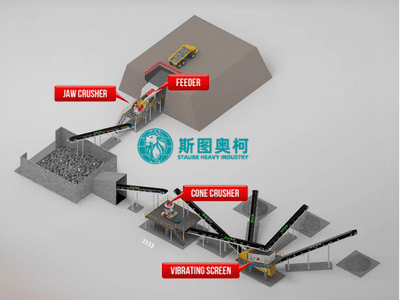

- Primary Crushing: Raw materials are fed into a jaw crusher for initial crushing.
- Secondary and Fine Crushing:Coarse material is conveyed to an impact crusher or cone crusher for further size reduction.
- Screening:The crushed material enters a vibrating screen to be sorted into various aggregate sizes.
- Recycling and Finished Product: Material meeting size specifications is sent to the finished product stockpile; material that does not meet requirements is returned to the crusher via a return conveyor for re-crushing (closed-loop circuit). If sand production is required, sand-making and washing stages are added.

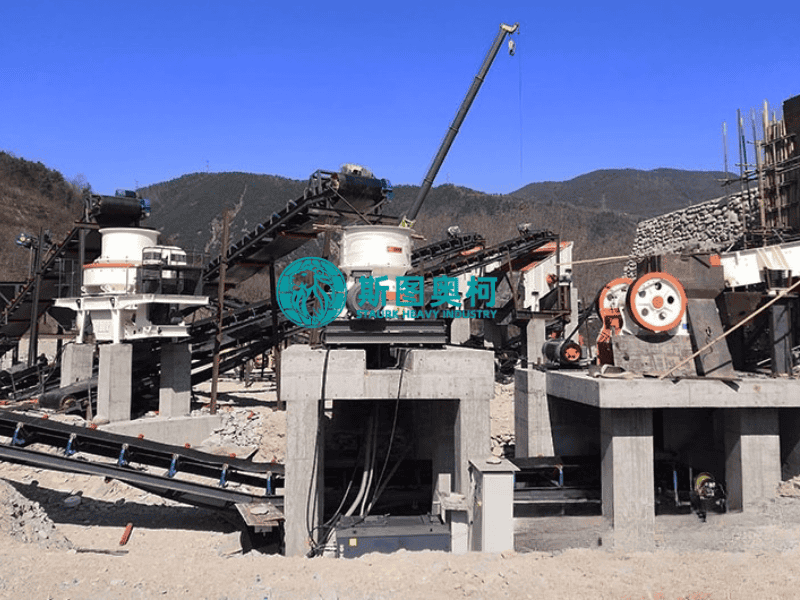

Applications
Models
No. | Production Line Type / Material | Capacity (T/H) | Max Feed (mm) | Primary Crusher | Secondary Crusher | Feeder Model | Screen Model |
1 | Limestone, Bluestone, etc. | 50-70 | ≤ 425 | PE-500×750
| PF-1010 Impact Crusher
| ZSW-380×80 | 3YA-1548 |
2 | Limestone, Bluestone, etc. | 80-120 | ≤ 500 | PE-600×900
| PF-1210 Impact Crusher
| ZSW-380×96 | 3YA-1854 |
3 | (Limestone, Bluestone, etc. | 120-150 | ≤ 500 | PE-600×900 | PF-1214 Impact Crusher | ZSW-490×96 | 2YA-2160 |
4 | Limestone, Bluestone, etc. | 180-220 | ≤ 630 | PE-750×1060 | PF-1315 Impact Crusher | ZSW-490×110 | 3YA-2160 |
5 | Limestone, Bluestone, etc. | 250-300 | ≤ 750 | PE-900×1200 | 2 units of PF-1315 Impact crusher | ZSW-490×130 | 2 units of 2YA-2460 |
6 | Limestone, Bluestone, etc. | 350-400 | ≤ 850 | PE-1000×1200 | PF-1520 Impact Crusher | ZSW-600×150 | 2 units of 3YA-2460 |
7 | Limestone, Bluestone, etc. | 500-600 | ≤ 1020 | PE-1200×1500 | PF-1820 Impact Crusher | ZSW-600×180 | 2 units of 3YA-3070 |

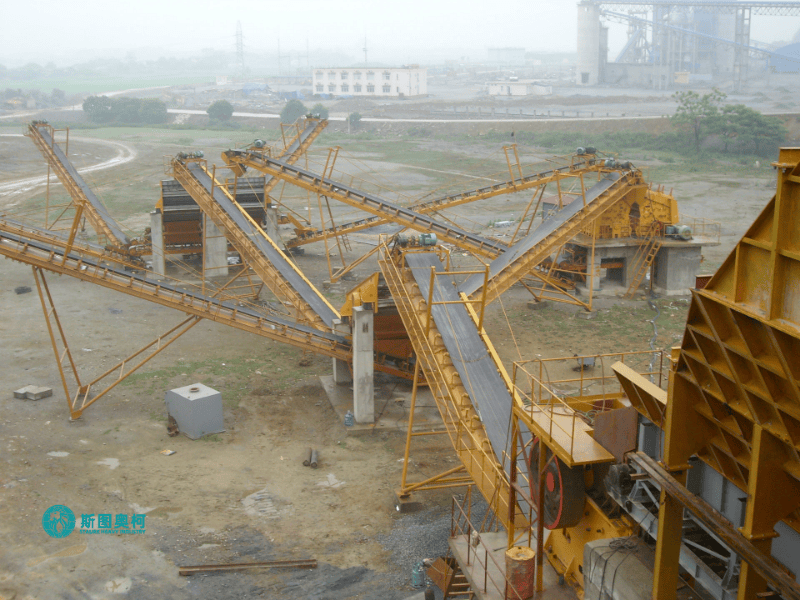

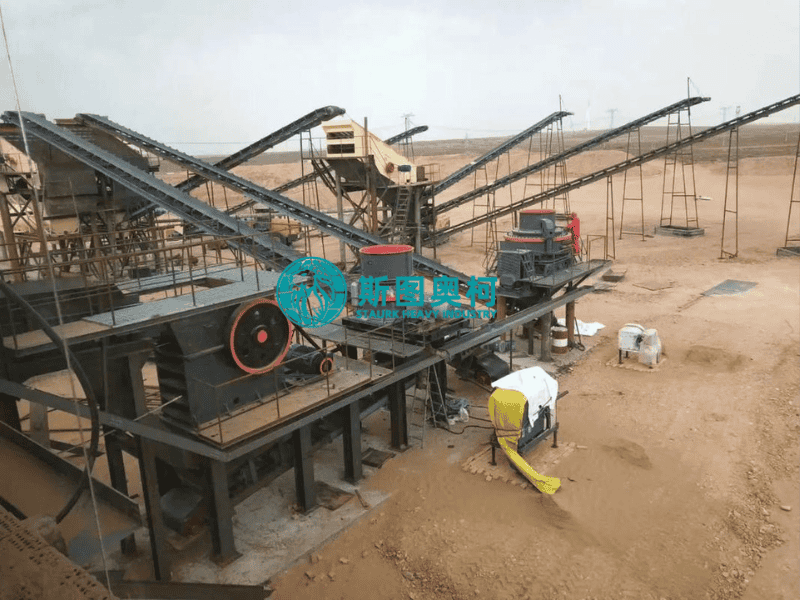

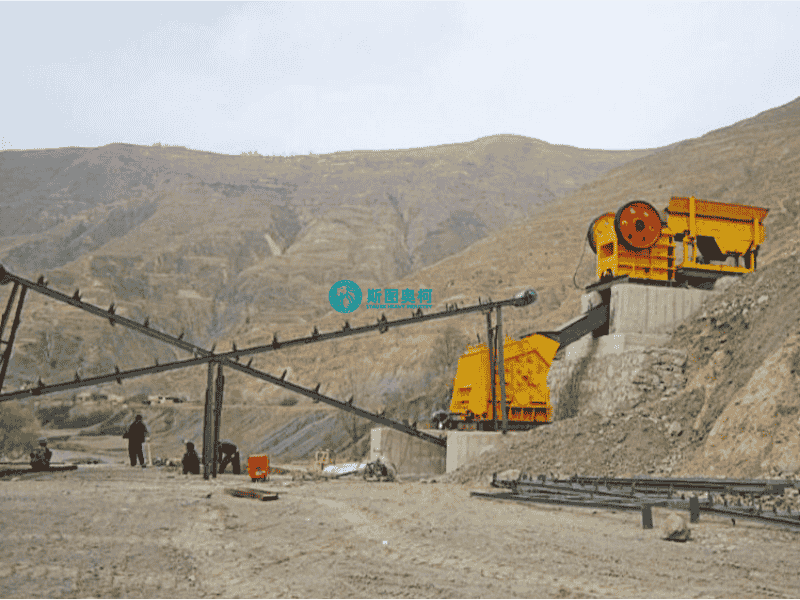

Related Cases
