screw sand washers are among the most widely used equipment in river sand washing and classification. They separate sand and gravel from clay through the agitation and conveying action of spiral blades. However, in practical selection, many users easily fall into misconceptions—either believing "bigger is better" or focusing solely on price. This often leads to insufficient production capacity or excessive operating costs once the equipment is put into operation. The key selection points are systematically outlined below across five sections.
Section 1: Define Your Needs
Before purchasing screw sand washer, three core questions must be addressed:
Washing Goal: What level of finished product quality do you aim to achieve? Is it for standard construction sand, or commercial concrete sand with strict clay-content requirements? This directly determines the required washing intensity.
Site Conditions: Is your existing production line layout compact, or is there sufficient space? screw sand washers feature a horizontal trough structure, making them longer and requiring a larger footprint than bucket-wheel sand washers.
Budget Range: A balance must be struck between initial investment and long-term operating costs. Twin-spiral equipment comes at a higher price and consumes more energy, but it offers significantly better washing performance.
Section 2: Understand Material Characteristics
The characteristics of river sand directly influence equipment selection, with two key parameters requiring careful evaluation:
Clay Content: If the clay content in river sand is below 10%, a single-spiral sand washer is fully capable. However, if the clay content exceeds 15% or includes clayish components, a double-screw sand washer is required to provide more thorough washing.
Feed Size: screw sand washers typically require a feed particle size below 10 mm. If the river sand contains larger gravel, screening equipment must be installed upstream to prevent damage to the spiral blades.
Section 3: Confirm Capacity and Equipment Dimensions
Confirming capacity and equipment dimensions is the most critical step in selection. The core logic is not "how wide should it be?" but rather "what throughput capacity does my required output demand?"
The processing capacity of a spiral sand washer is primarily determined by the spiral diameter and trough length:
Spiral Diameter: A larger diameter allows the blades to push a greater volume of material, setting the physical upper limit of throughput.
Trough Length: The trough length determines the retention time of the material inside the washing tank—longer retention time allows for more thorough separation of clay from sand particles.
For river sand washing, every 5% increase in clay content requires a corresponding extension in washing time; otherwise, the clay content of the discharged material may exceed standards. The continuity of material feeding must also be considered: if upstream feeding is uneven, the machine cannot perform to its full capability, regardless of its size.
The correct selection approach is to first establish the target hourly output, calculate the required range of spiral diameters, and reserve at least a 20% margin to accommodate fluctuations in clay content. Avoid blindly chasing oversized equipment; overly large machinery not only incurs higher upfront investment but also reduces washing efficiency when output is insufficient due to excessively thin material layers—resulting in an inefficient "overpowered" operating state. The ideal choice fulfills production demands while remaining as compact in size and economical in operating costs as possible.
Section 4: Select Compatible Equipment Components & Understand Working Principles
After clarifying requirements and production capacity, attention should be directed to the core configuration and operating principles.
Working Principle

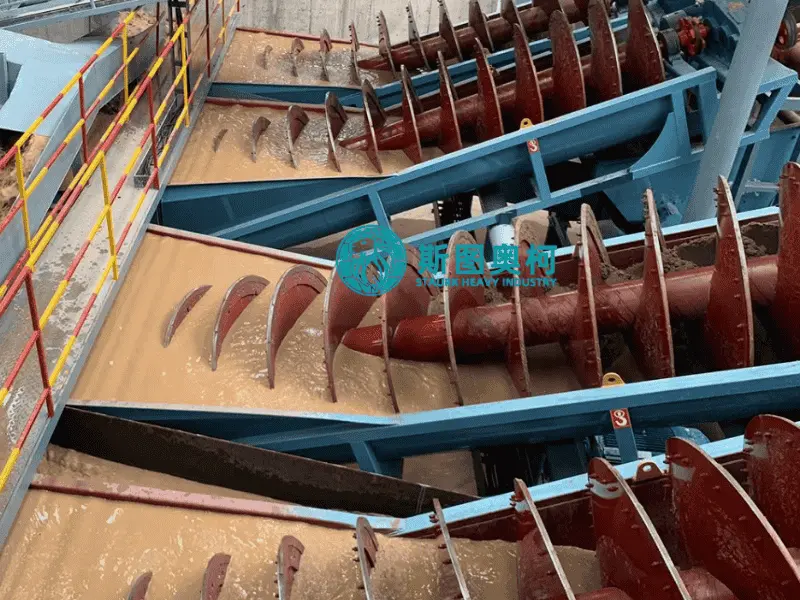

During operation, the motor drives the spiral shaft to rotate via a speed reducer. River sand enters the trough from the feed end and, under the agitating action of the spiral blades, continuously tumbles and rubs together to separate attached clay from sand grains. Meanwhile, water is continuously added to create a flow that carries impurities and fine clay powder out through the overflow port. The cleaned sand is pushed by the spiral blades and discharged from the outlet end.
Key Component Selection Points

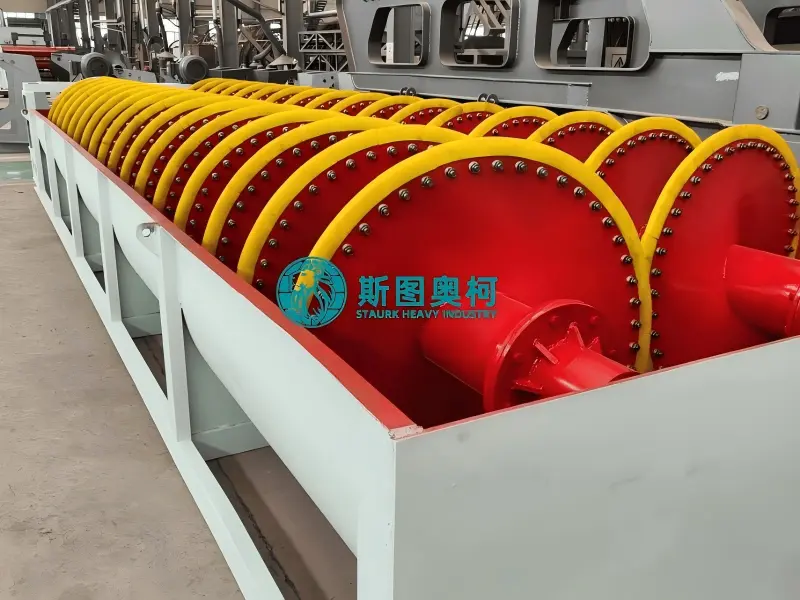

Single Spiral vs. double Spiral: Single-spiral models suit small-to-medium production lines, offering high cost-effectiveness and simple maintenance. Double-spiral models deliver higher washing intensity, making them ideal for processing materials with high clay content.
Spiral Blade Material: Wear resistance directly impacts equipment service life. Choosing high wear-resistant alloy materials reduces replacement frequency.
Sealing Structure: The bearing positions should be sealed with multiple rubber rings to prevent slurry intrusion from causing premature damage.
Section 5: Summary
Selecting screw sand washer for river sand ultimately comes down to accurately matching production requirements, material characteristics, and equipment performance. It is recommended to proceed with decision-making in the following order:
- Define target output and finished product standards.
- Test the clay content and feed particle size of the river sand.
- Choose between a single-spiral or double-spiral model based on these parameters.
- Match appropriate equipment specifications and wear-resistant components.
Always leave an adequate margin above theoretical capacity during selection to handle fluctuations and avoid bottlenecks during peak seasons. A systematic and forward-looking selection strategy ensures the equipment maintains high efficiency and stability throughout long-term operation.
