Why Silica Sand Drying Needs Better Moisture Control
Silica sand is widely used in glass, foundry, construction material, ceramic, filtration, and other industrial applications. In many projects, moisture control is an important step before screening, storage, packing, transportation, or further processing.
After washing, natural storage, or wet processing, silica sand may contain different moisture levels. If the sand is too wet, it may cause sticking during conveying, uneven screening, difficult packing, and higher transportation cost. For some applications, unstable moisture can also affect downstream production efficiency.

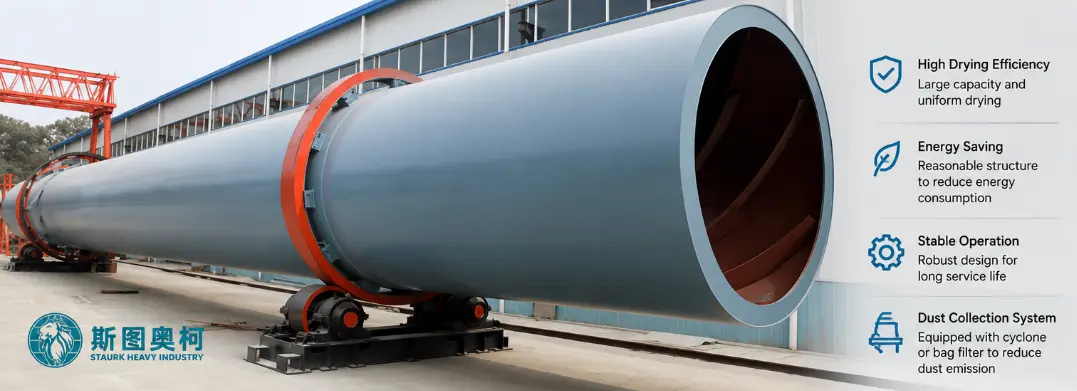

A rotary dryer for silica sand drying is commonly used because it can support continuous operation and handle different moisture conditions. The rotating drum keeps the sand moving while hot air removes moisture from the material. Compared with simple outdoor drying or batch drying, a rotary drum dryer provides a more stable and controllable drying process for industrial silica sand production.
At Staurk, Henan Staurk Machinery Co.,Ltd provides drying and calcination equipment, mineral processing equipment, and plant solutions for silica sand, river sand, mineral powder, clay, ore, and other industrial materials. For silica sand drying projects, we focus on practical equipment selection based on moisture, capacity, heat source, dust collection, and downstream process requirements.
How a Rotary Dryer Works in Silica Sand Drying
A silica sand rotary dryer usually works as part of a complete silica sand drying plant. The typical system may include feeding equipment, belt conveyor, rotary dryer, hot air furnace or burner, dust collection system, induced draft fan, discharge conveyor, and control system.
Wet silica sand is first sent into the dryer through a feeder or belt conveyor. The dryer drum is installed at a slight inclination, so the material can move gradually from the inlet to the outlet. As the drum rotates, internal lifting plates lift and drop the sand repeatedly. This movement helps spread the material and increases contact between silica sand particles and hot air.
The heat source provides hot air for moisture evaporation. Depending on the project site, the fuel may be coal, natural gas, diesel, biomass, or other available energy sources. The dried silica sand is discharged from the outlet and can then be sent to a storage silo, vibrating screen, packing machine, or other downstream equipment.
Because dry silica sand can produce fine dust, the dust collection system should be considered from the beginning. A cyclone dust collector, bag filter, fan, and air duct system may be used to reduce dust emission and recover fine material. The final configuration should match the material condition, exhaust gas volume, site layout, and local environmental requirements.
Key Factors When Choosing a Rotary Dryer for Silica Sand
When choosing a rotary dryer for silica sand drying, buyers should first confirm the raw sand type, initial moisture content, required final moisture, feed size, and processing capacity. Washed silica sand, natural silica sand, and classified sand may have different moisture levels and particle size distributions. These details affect dryer size, drying time, heat demand, and final moisture stability.
Capacity should be discussed carefully. Buyers need to clarify whether the required capacity refers to wet sand input or dry sand output, because moisture removal changes the final production volume. Working hours per day, raw moisture range, target moisture, and downstream equipment capacity should be considered together.
The heat source is another important factor. Fuel availability, operating cost, environmental requirements, and installation conditions will influence the final drying solution. A stable heat supply helps keep the final moisture more consistent and supports continuous production.
Dust collection and material handling should also be matched with the dryer. Dry silica sand can generate fine dust during discharge, conveying, screening, or packing. The rotary dryer, belt conveyor, dust collector, fan, vibrating screen, and storage system should be selected as one process instead of separate machines.

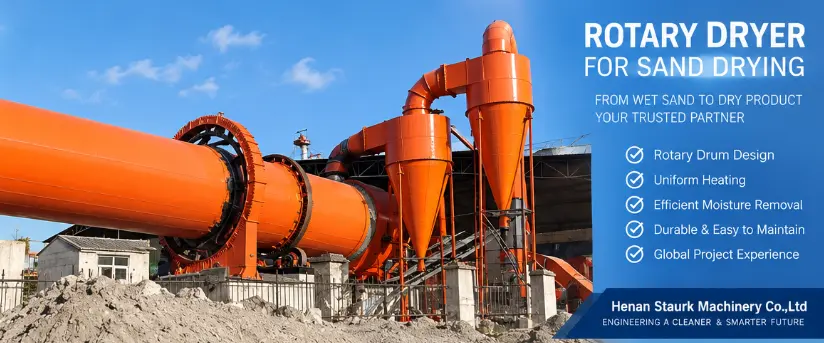

Rotary Dryer in a Silica Sand Drying Plant
In a complete silica sand drying plant, the rotary dryer is usually installed after washing, dewatering, or feeding equipment. If the silica sand comes from a washing line, reducing part of the free water before drying can help lower fuel consumption and improve drying efficiency.
A common silica sand drying process may include feeding, conveying, drying, dust collection, discharge, screening, storage, and packing. For some projects, the dried sand needs to pass through a vibrating screen to separate different particle sizes. For other projects, it may go directly to storage or bagging after moisture control.
The process should be designed according to the final use of the silica sand. Glass sand, foundry sand, construction sand, and industrial filler may have different requirements for moisture, particle size, and cleanliness. This is why the dryer should be selected together with the complete process flow.
A well-matched silica sand drying system can help improve moisture stability, reduce dust problems, avoid material blockage, and support smoother downstream handling.
How Staurk Helps with Silica Sand Dryer Selection
Before recommending a rotary dryer for silica sand drying, Staurk usually needs to understand the raw material type, initial moisture content, required final moisture, feed size, processing capacity, available heat source, site layout, dust collection requirement, and downstream process.
Based on these details, Staurk can help recommend a suitable silica sand rotary dryer and related equipment. Some customers may only need one dryer to upgrade an existing drying section. Other projects may require a complete silica sand drying plant with feeding system, belt conveyor, hot air system, rotary drum dryer, dust collector, fan, vibrating screen, storage silo, and packing system.
For silica sand producers, mining companies, construction material suppliers, EPC contractors, and equipment distributors, this process-based selection can help avoid equipment mismatch and provide a more practical drying solution.
Conclusion
A rotary dryer for silica sand drying is an important machine for moisture control in silica sand processing projects. It helps prepare silica sand for screening, storage, packing, transportation, or industrial use.
When selecting a silica sand rotary dryer, buyers should consider raw sand type, initial moisture, required final moisture, capacity, heat source, dust collection, conveying, site layout, and downstream process. Choosing only by drum size or price may lead to unstable moisture, high fuel consumption, dust leakage, or poor plant matching.
If you are planning a silica sand drying project, it is better to evaluate the rotary dryer as part of the complete drying process. A suitable drying system should match both the raw material condition and the final product requirement.
If you need a rotary dryer for silica sand drying, Staurk can help review your project requirements and recommend a practical drying solution. Please share your silica sand type, initial moisture content, required final moisture, feed size, processing capacity, available heat source, installation site condition, dust collection requirement, and downstream process. Based on these details, Henan Staurk Machinery Co.,Ltd can provide a suitable silica sand rotary dryer recommendation and silica sand drying plant solution.
