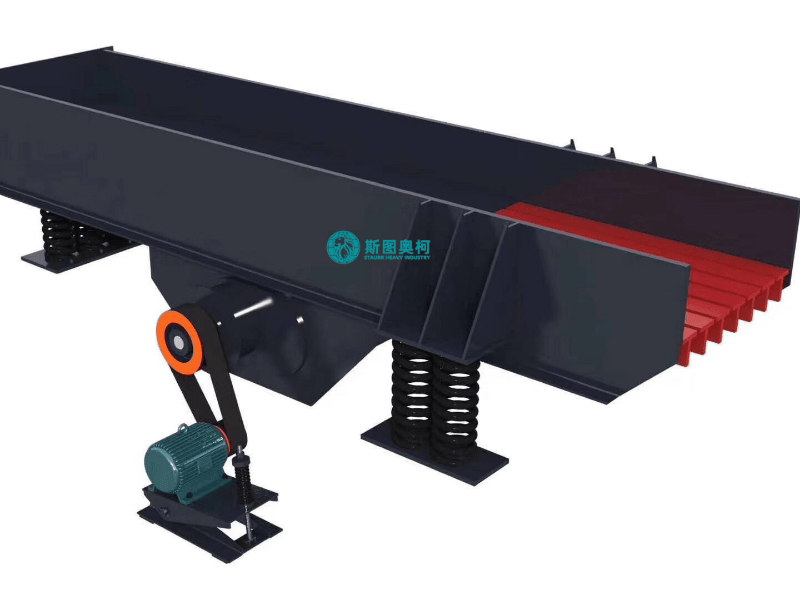

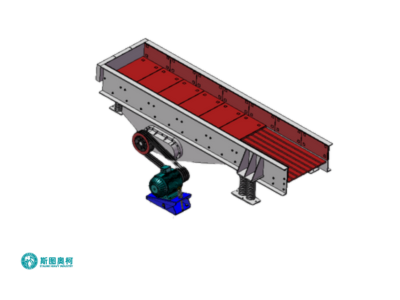

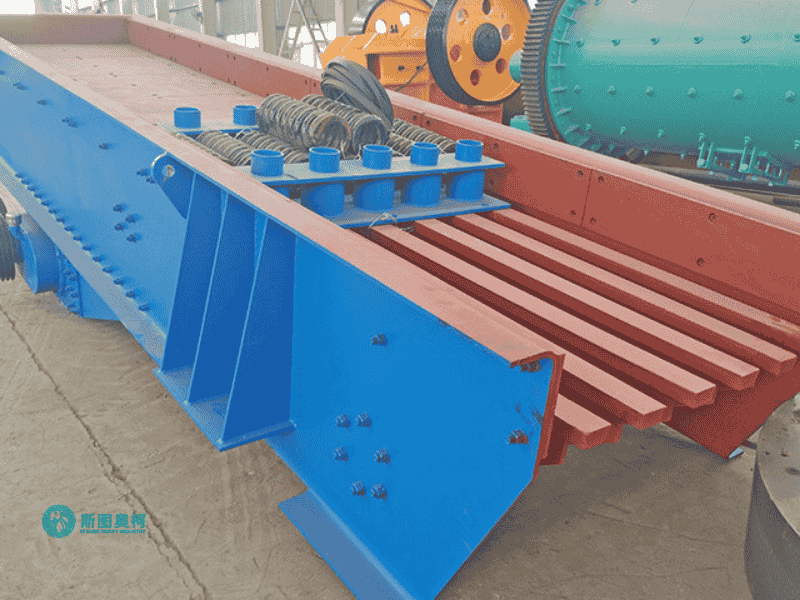

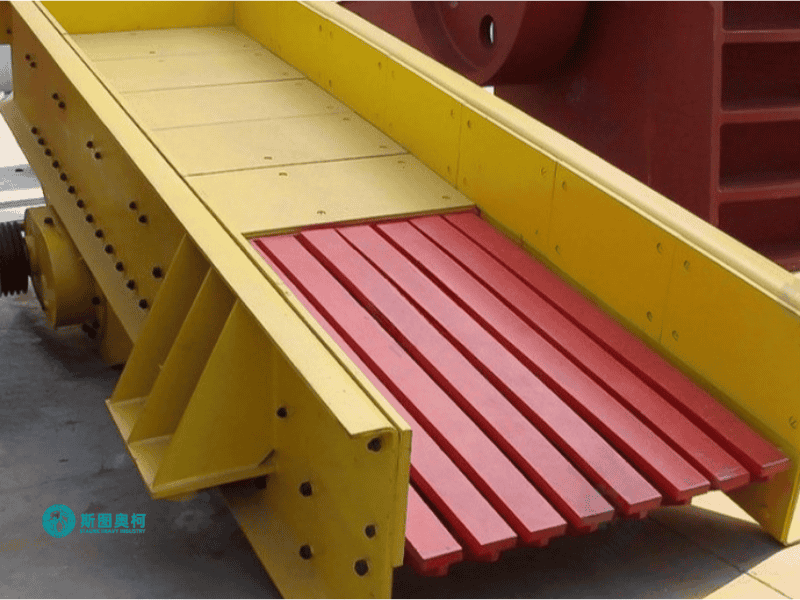

Vibrating Feeder
Capacity: 1-1000 TPH
Feeding Size: 0-500 mm
Discharging Size: 0-500 mm
Handling Materials: Iron ore, copper ore, gold ore, limestone, quartz sand, clinker, gypsum, etc.
Vibrating feeder transports bulk materials (ores, aggregates) uniformly at 1–1,000 t/h via vibration, handling 0–500 mm particles without size reduction. Ideal for crusher feeding or batching, it offers adjustable flow control (±2%) with minimal energy use. Avoid sticky or explosive materials.
Advantages
01.
Precise Feeding
Ensures ±2% flow accuracy via adjustable vibration frequency (700-6,000 RPM) and amplitude (2-10 mm), critical for crusher protection.
02.
Durable Construction
Handles 1-1,000 t/h throughput with 0-500 mm feed size, adapting to coarse ores or fine powders via customized trough designs.
03.
Low Maintenance
No belts or chains reduces wear; only periodic checks on springs/motors needed (10,000+ hour lifespan).
04.
Energy Efficient
Electromagnetic models consume 20-30% less power than mechanical feeders for equivalent duties.

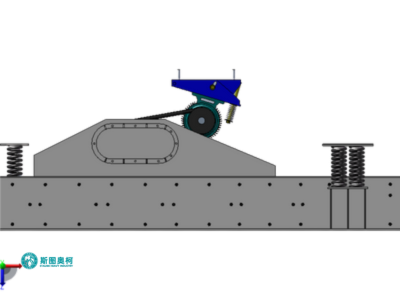

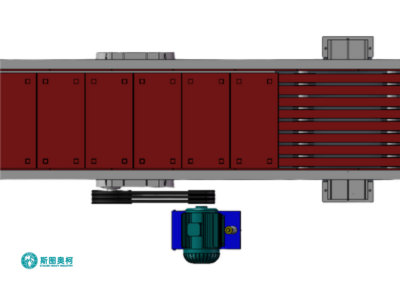

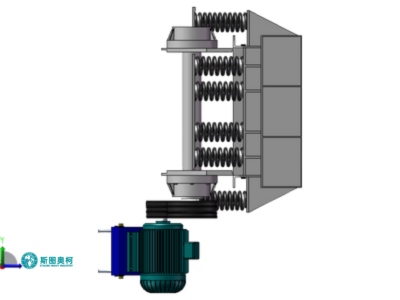

How Does A Vibrating Feeder Work
1. Material Loading: Bulk goods (0–500 mm) are fed onto the trough, which is mounted on springs or rubber isolators to absorb vibrations.
2. Vibration Generation: An electric motor (700–1,500 RPM) or electromagnetic drive (3,000–6,000 RPM) creates directional oscillations, propelling materials forward in micro-throws.
3. Controlled Flow: Adjusting vibration amplitude (2–10 mm) and frequency regulates feed rate (1–1,000 t/h), while inclined troughs (0°–15°) enhance gravity-assisted movement.
4. Uniform Discharge: Particles exit smoothly without segregation, ensuring consistent supply to crushers or conveyors (±2% flow accuracy).

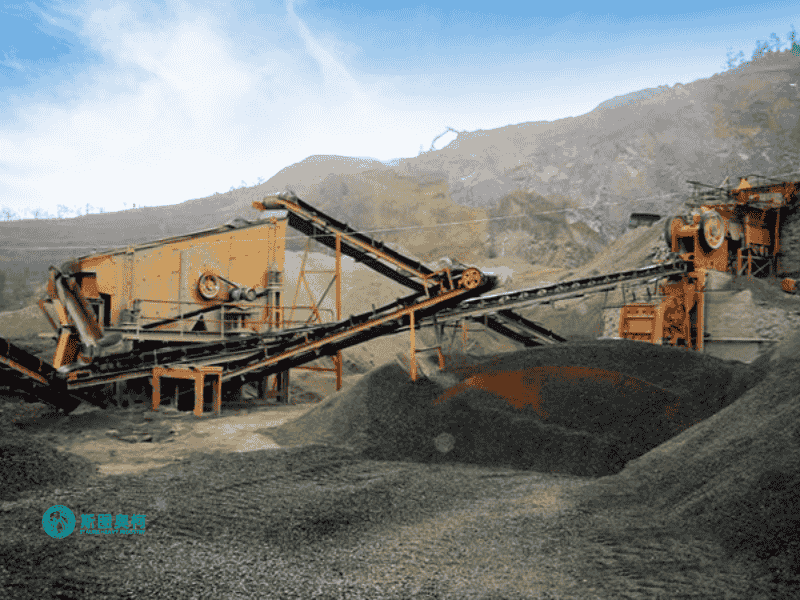

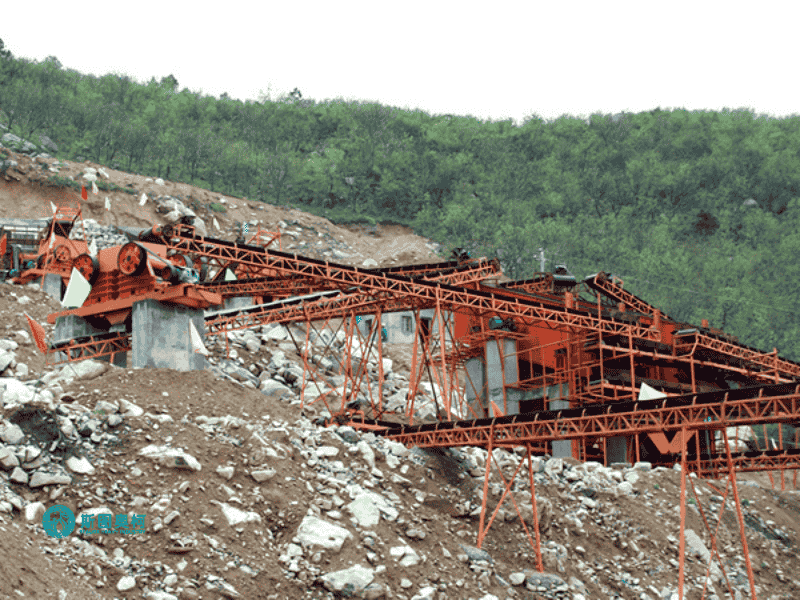

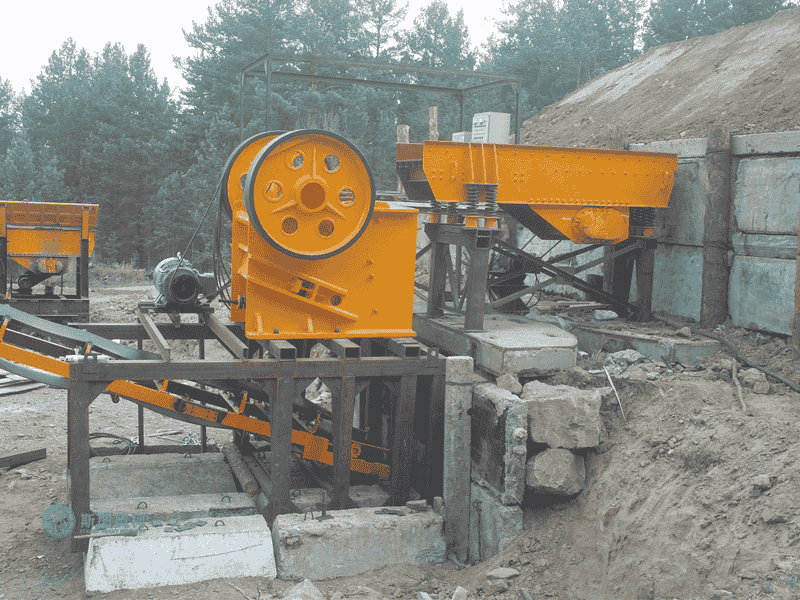

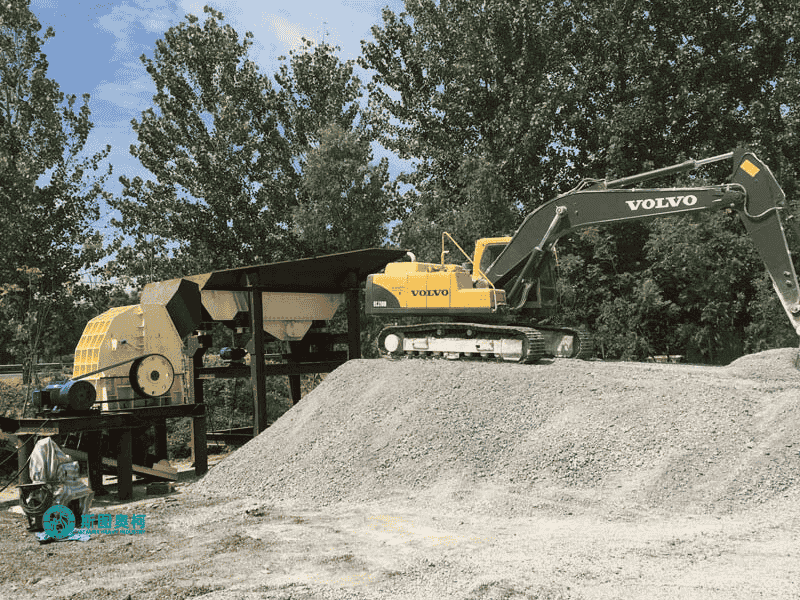

Applications
Models
Model | Capacity (TPH) | Feed Size (mm) | Power (kW) | Vibration Frequency (rpm) | Amplitude (mm) | Application |
VF-500 | 50-100 | 300 | 1.5 | 900-1500 | 2-5 | Small-scale mining and quarrying |
VF-1000 | 100-200 | 400 | 3.0 | 900-1500 | 2-5 | Medium-scale aggregate production |
VF-1500 | 200-300 | 500 | 5.5 | 900-1500 | 2-5 | Large-scale mining operations |
VF-2000 | 300-400 | 600 | 7.5 | 900-1500 | 2-5 | Industrial construction projects |
VF-3000 | 400-500 | 700 | 11 | 900-1500 | 2-5 | Heavy-duty mining and material handling |
