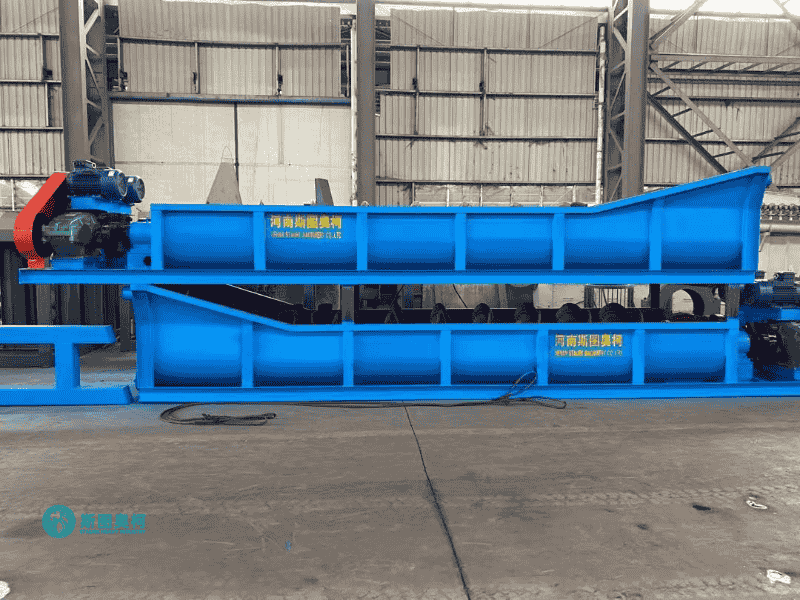

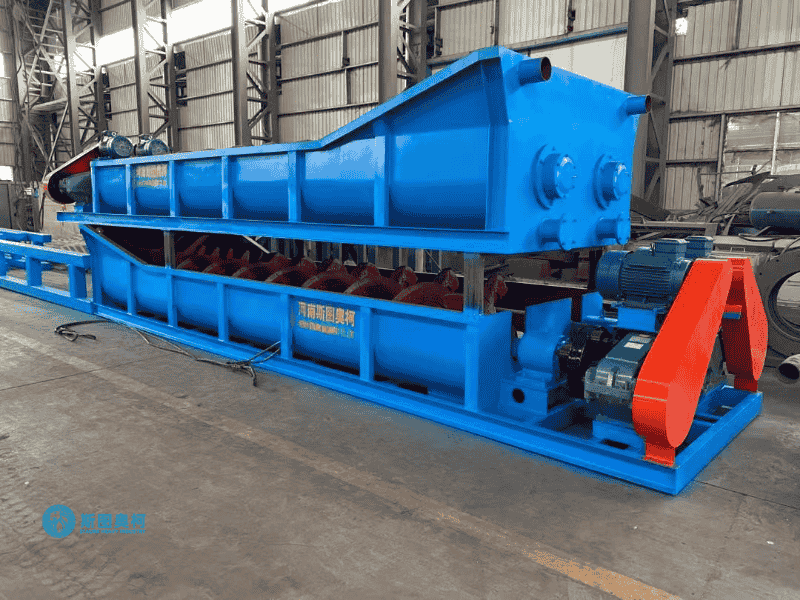

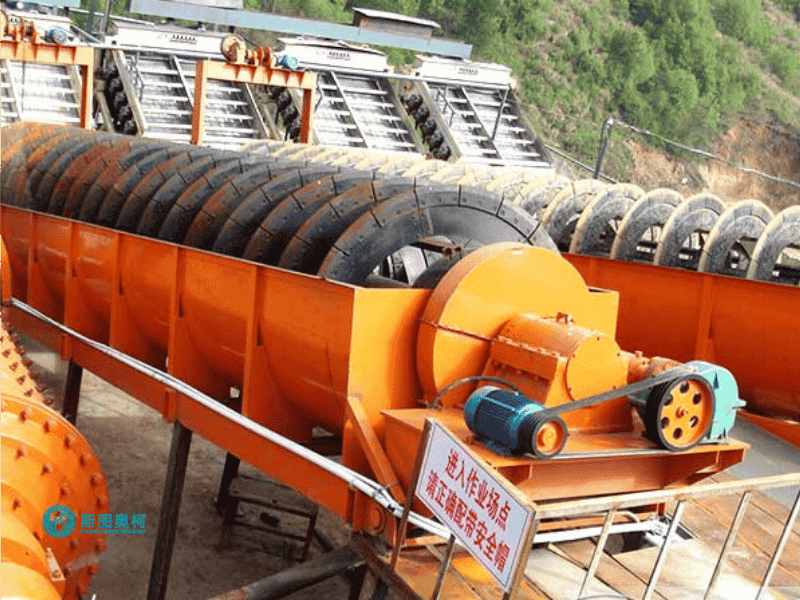

Spiral Sand Washer
Capacity: 5-300 TPH
Feeding Size: 0.1-10 mm
Discharging Size: 0.1-10 mm
Handling Materials: Natural river sand, sea sand, gravel sand, etc.
Spiral sand washer cleans and classifies sand (0.1–10 mm) by rotating spirals, removing ≤1% clay at 5–300 t/h. Ideal for river/artificial sand washing, it consumes 1–3 m³/t water with optional fine sand recovery. Avoid sticky clay >10 mm.
Advantages
01.
High Cleaning Efficiency
Removes 95%+ clay coatings from 0.1–10mm sand, achieving ≤1% residual impurities for construction-grade material.
02.
Water Conservation
Uses only 1–3 m³ water per ton (vs. 5 m³ in traditional methods) with closed-loop recycling systems.
03.
Dual Functionality
Combines washing and grading in one unit, outputting classified sand (e.g., 0.1–3mm or 1–5mm) directly.
04.
Low Maintenance
Wear-resistant manganese steel spirals last 2–3x longer than standard designs in abrasive silica sand applications.

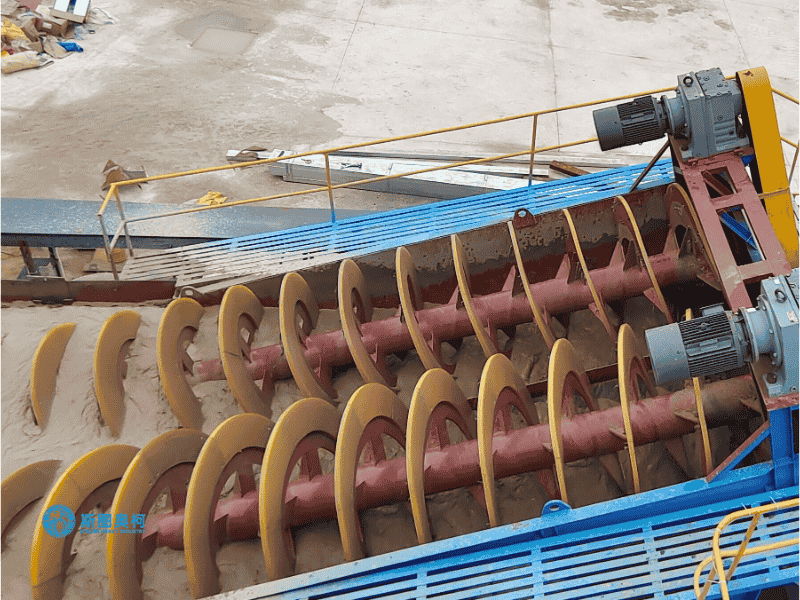

How Does A Spiral Sand Washer Work
1. Slurry Feeding: Sand-clay mixture (20–30% solids, 0.1–10 mm) enters the inclined trough, where rotating spirals (10–20 RPM) agitate the material.
2. Mechanical Scrubbing: Sand particles collide under spiral motion, dislodging surface clay while counter-current water (0.2–0.4 MPa spray) flushes impurities.
3. Hydraulic Classification: Clean sand rises along the spiral grooves due to density, while clay slurry overflows the weir at the trough’s lower end.
4. Dehydrated Discharge: Washed sand exits the upper chute with <15% moisture (optionally dewatered further via screens), completing the cycle.
Applications
Models
Model | Feed Opening Size (mm) | Max Feed Size (mm) | Capacity (t/h) | Motor Power (kw) | Discharge Opening Range (mm) | Overall Dimensions (L×W×H, mm) | Weight (t) |
PE-150×250 | 150×250 | 125 | 1-3 | 5.5 | 10-40 | 896×745×935 | 1.5 |
PE-250×400 | 250×400 | 210 | 5-20 | 15 | 20-60 | 1430×1310×1340 | 3 |
PE-400×600 | 400×600 | 340 | 16-65 | 30 | 40-100 | 1700×1732×1653 | 7 |
PE-500×750 | 500×750 | 425 | 45-100 | 55 | 50-100 | 2035×1921×2000 | 12 |
PE-600×900 | 600×900 | 500 | 50-120 | 55-75 | 65-160 | 2290×2206×2370 | 17 |
PE-750×1060 | 750×1060 | 630 | 110-320 | 90-110 | 80-140 | 2655×2302×3110 | 29 |
PE-900×1200 | 900×1200 | 750 | 220-450 | 110-132 | 95-165 | 3800×3166×3045 | 52 |
PEX-150×750 | 150×750 | 120 | 8-25 | 15 | 18-48 | 1200×1530×1060 | 3.8 |
PEX-250×1000 | 250×1000 | 210 | 16-52 | 30 | 25-60 | 1560×1950×1390 | 7 |
PEX-300×1300 | 300×1300 | 250 | 16-105 | 55 | 20-90 | 2720×1950×1600 | 15.6 |
