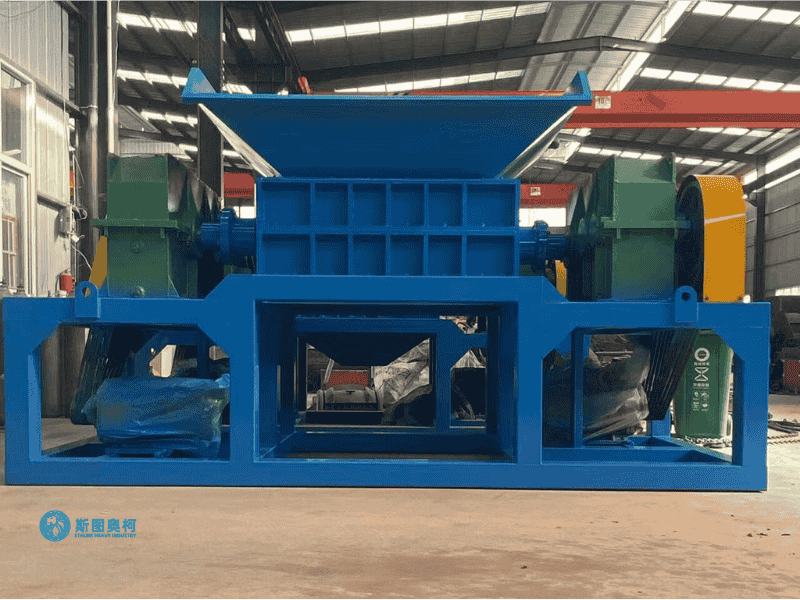

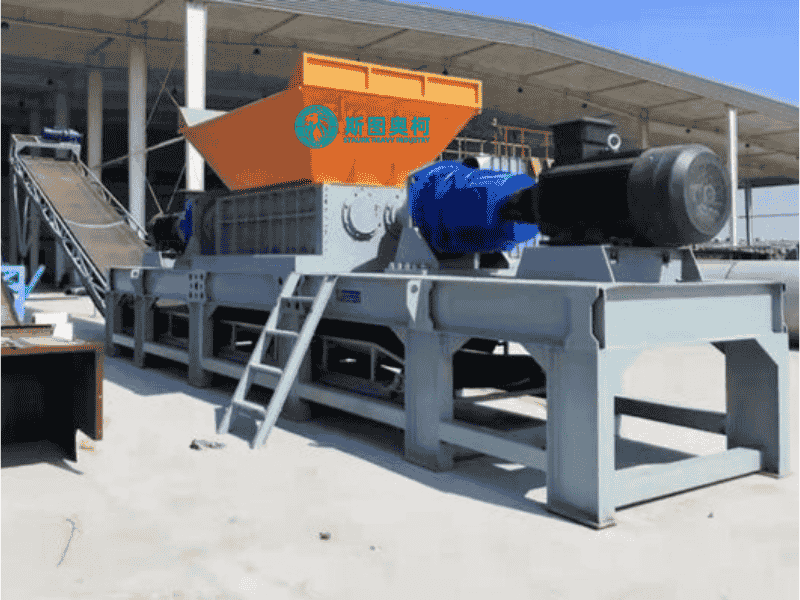

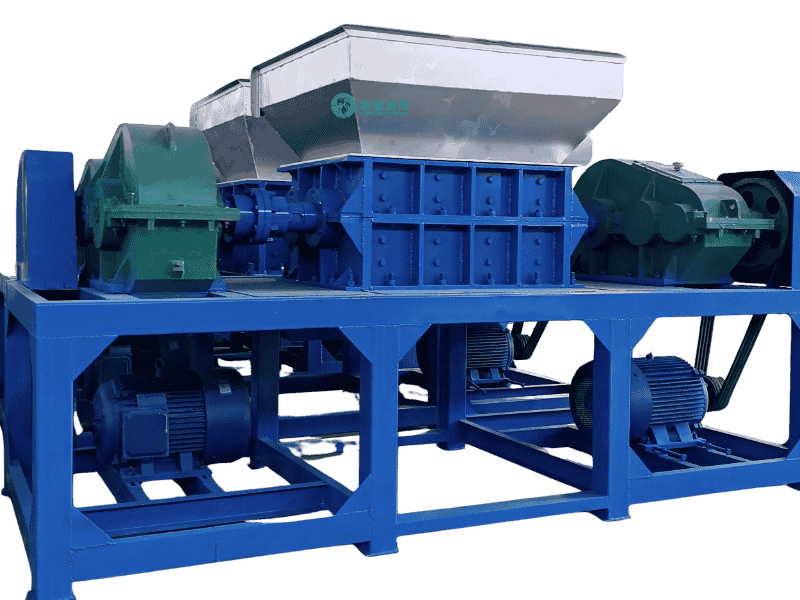

Shredder Machine
Capacity: 3-25TPH
Feeding Size: ≤2000mm
Discharging Size: 10-100mm
Handling Materials: Plastic, rubber, wood, metal, municipal waste, industrial waste, electronic waste, etc.

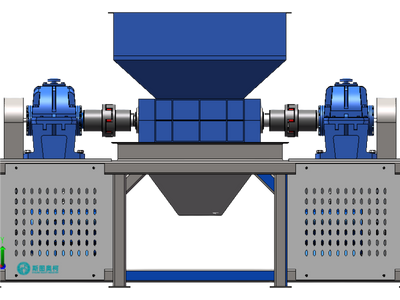

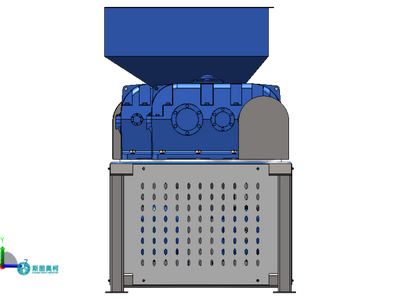

A robust machine equipped with two counter-rotating shafts and interlocking blades. It efficiently shreds tough materials like plastics, tires, and industrial waste through shearing and tearing actions. Featuring high torque, automated controls, and size-adjustable screens, it ensures uniform output, minimal jams, and low energy consumption. Ideal for recycling, waste reduction, and volume minimization applications.
Advantages
01.
High Efficiency
Handles diverse materials with continuous operation, maximizing throughput and reducing processing time.
02.
Robust Durability
Built with hardened blades and heavy-duty structure to withstand tough conditions and abrasive materials.
03.
Uniform Output
Produces consistently sized particles ideal for recycling, ensuring quality and ease of further processing.
04.
Low Maintenance
Simple design with easy access for blade changes and minimal downtime, lowering operational costs.

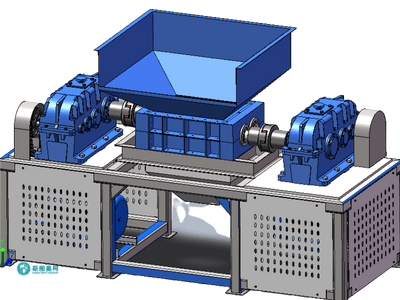

How Does A Shredder Machine Work

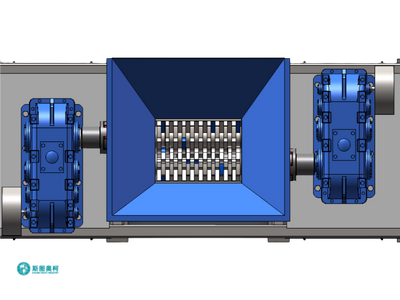

1. Double Shaft Shearing Action
Two counter-rotating shafts with interlocking blades grip, shear, and tear materials simultaneously.
2. Size Reduction via Cutting
Blades slice materials into smaller pieces through tensile and shear forces, ensuring uniform output.
3. Controlled Feed and Output
Hydraulic or pusher plates regulate feeding, while screens below control final particle size.
4. Automated Safety Operation
PLC system monitors load, auto-reverses to prevent jams, and ensures energy-efficient processing.

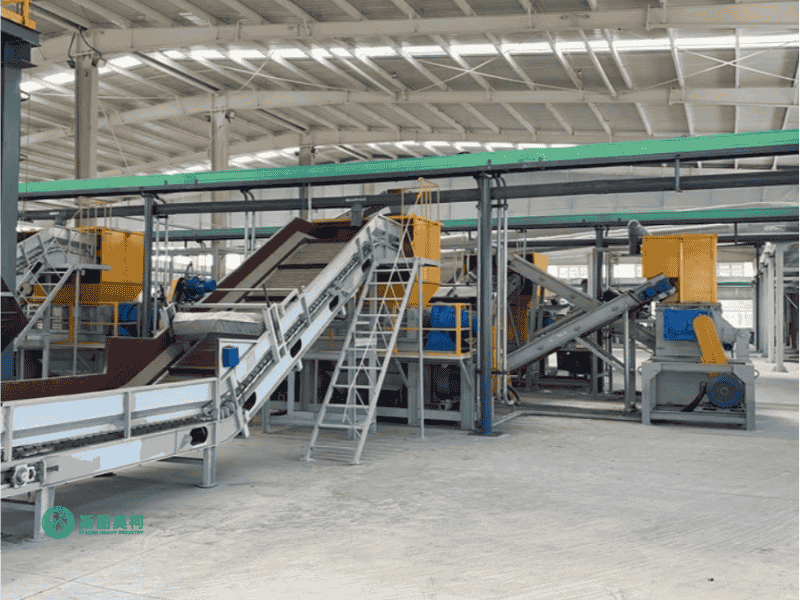

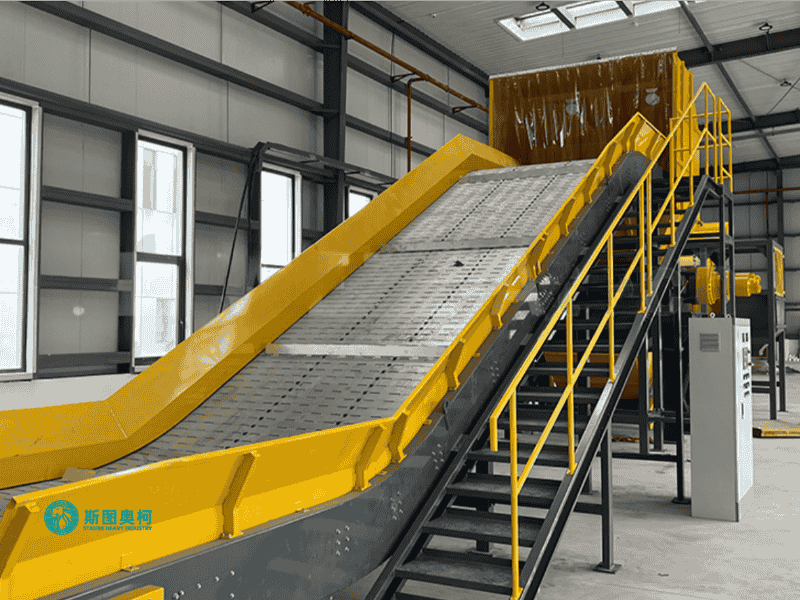

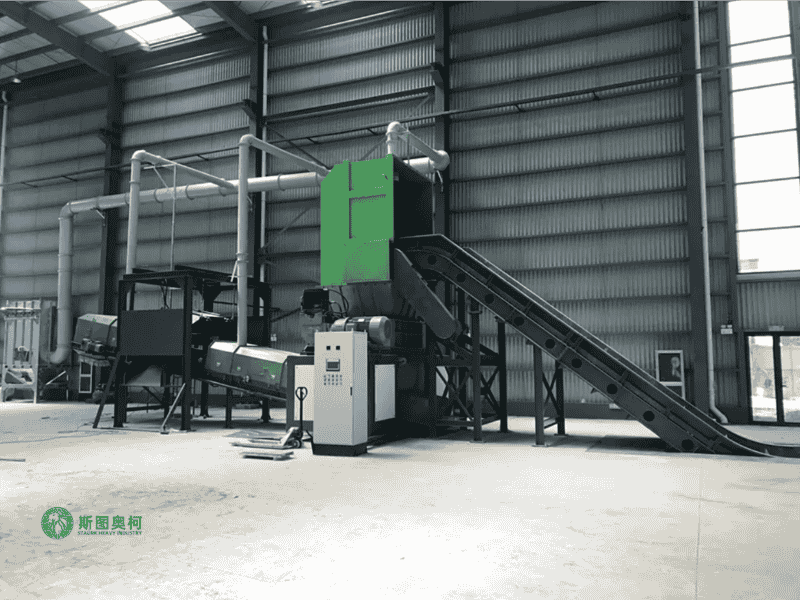

Applications
Models
Model | Power (kW) | Capacity (TPH) | Shaft Speed (RPM) | Feed Opening (mm) | Weight (kg) | Applications |
DS-3060 | 2×15 | 3–5 | 15–30 | 600×800 | 5,200 | Plastics, Paper, Municipal Waste |
DS-40100 | 2×22 | 5–8 | 15–30 | 1,000×1,200 | 8,500 | Wood, Light Metals, Industrial Waste |
DS-50120 | 2×37 | 8–12 | 12–25 | 1,200×1,400 | 12,000 | Tires, E-Waste, Solid Waste |
DS-60150 | 2×45 | 12–18 | 12–25 | 1,500×1,800 | 16,500 | Construction Waste, Large Plastics |
DS-75200 | 2×75 | 18–25 | 10–20 | 2,000×2,200 | 24,000 | Heavy-Duty Scrap, Demolition Waste |
