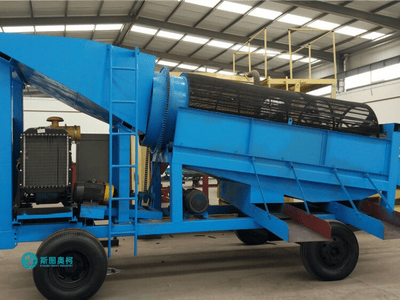

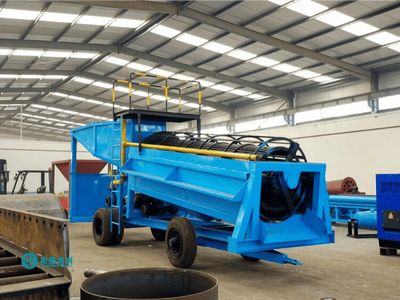

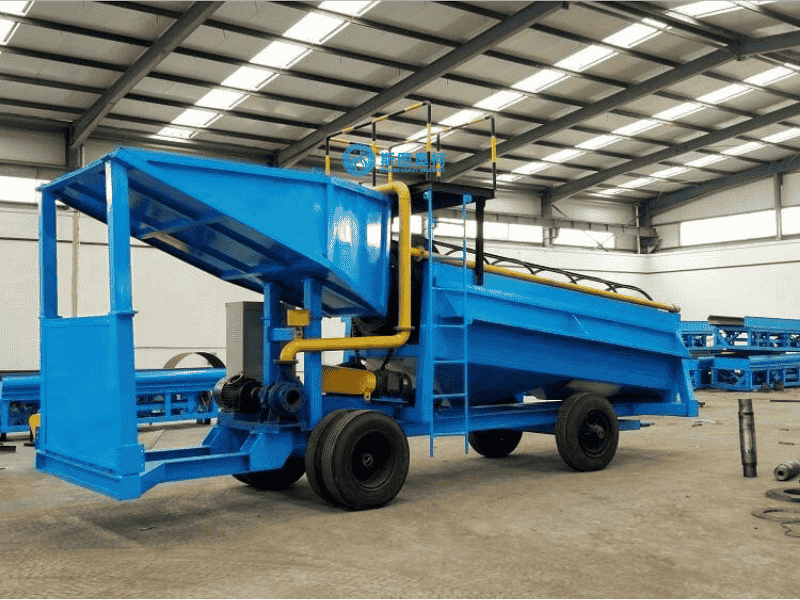

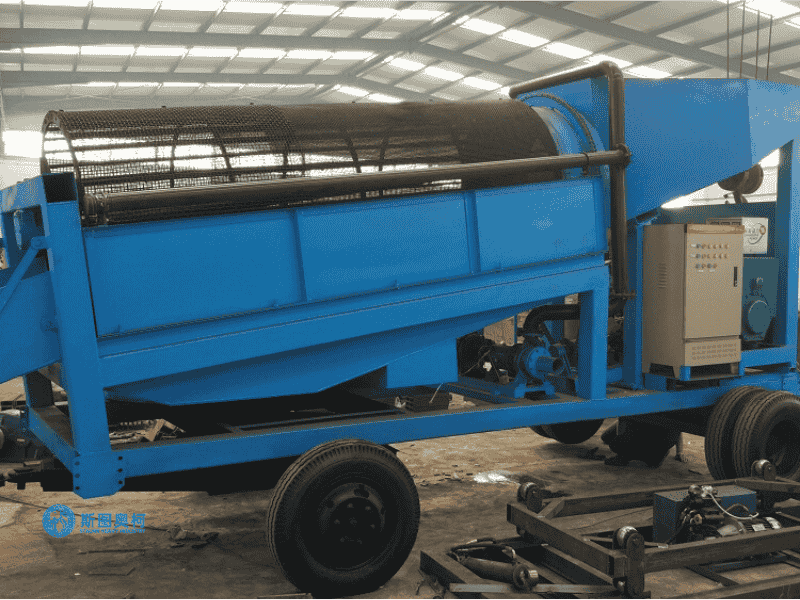

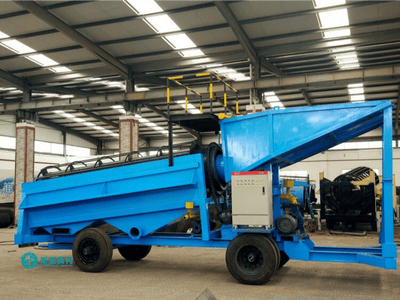

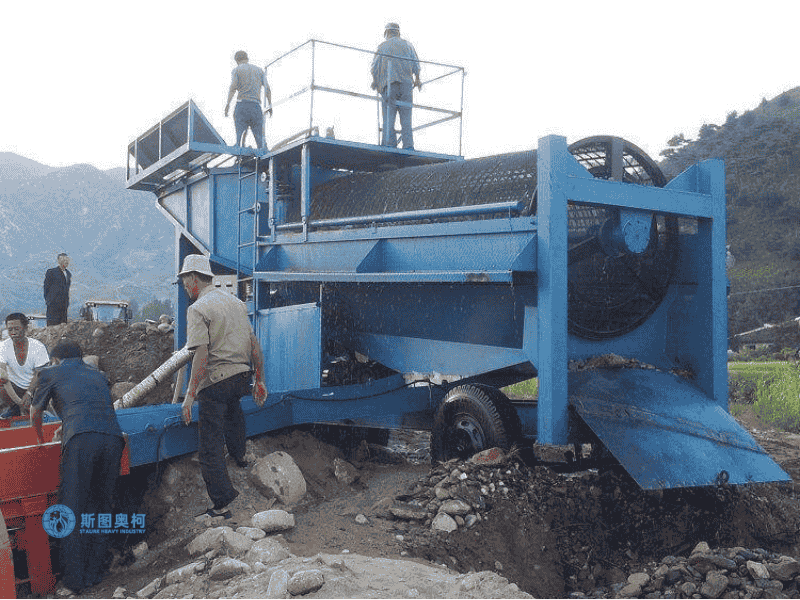

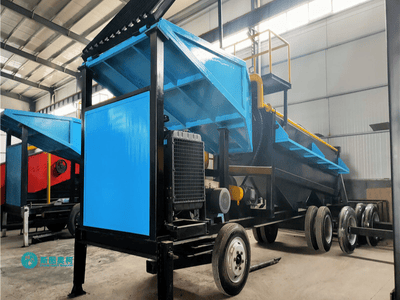

Portable Gold Separation Station
Capacity: 0.1-5 TPH
Feeding Size: 0-20 mm
Discharging Size: Gold recovery rate of concentrate: ≥90%, gold residue of tailings: < 0.5 g/t
Handling Materials: Placer gold mine, rock gold mine, tailings, etc.
Portable gold separation station extracts gold from placer/hard rock ores (0–20 mm) via centrifugal/gravity methods, processing 0.1–5 t/h onsite. Integrated with crushers, screens, and water circuits, it achieves >90% recovery for >0.1 mm gold. Ideal for remote exploration but limited to small-scale ops.
Advantages
01.
Rapid Deployment
Modular units assemble in 2–4 hours with minimal tools, enabling immediate production in remote sites without infrastructure.
02.
High Mobility
Compact design fits on trailers or skids, transportable by 4WD or helicopter to inaccessible.
03.
Efficient Recovery
Combines centrifugal (90%+ Au recovery for >0.1mm) and gravity separation, adaptable to placer or crushed ore feeds.
04.
Low Operating Cost
Solar/diesel hybrid power and water recycling cut fuel/water expenses by 40–60% versus traditional setups.
How Does A Portable Gold Separation Station Work
1. Ore Preparation: Placer gravels (0–20 mm) are screened to remove oversize rocks, while hard rock ores are crushed to ≤2 mm by a mini jaw crusher.
2. Gravity Concentration: Material enters a centrifugal concentrator (Knelson, 40–200 G) or sluice box, where gold densifies while lighter gangue washes away.
3. Secondary Refinement: Concentrates pass through a shaking table or spiral separator to upgrade gold purity (50–90% Au) by removing residual sulfides/black sands.
4. Tailings Management: Waste rocks exit the system, while process water is recycled via settling tanks to minimize environmental impact.

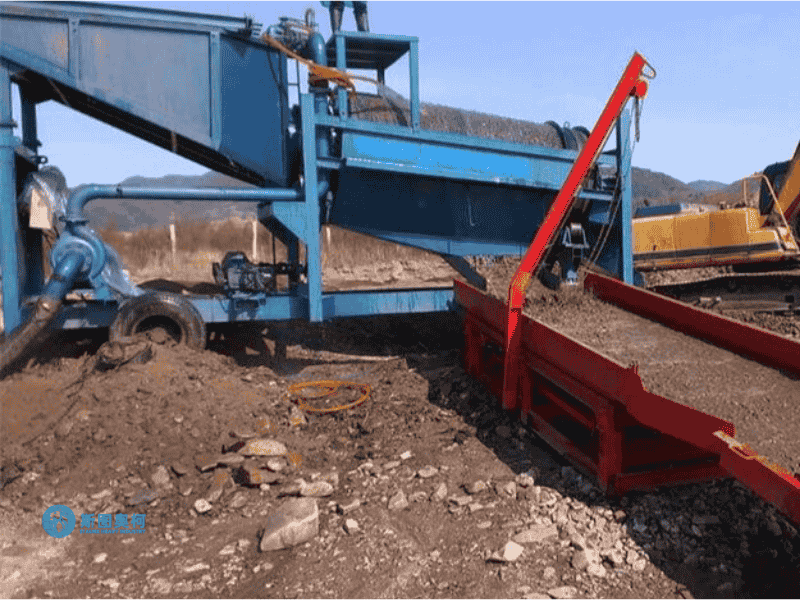

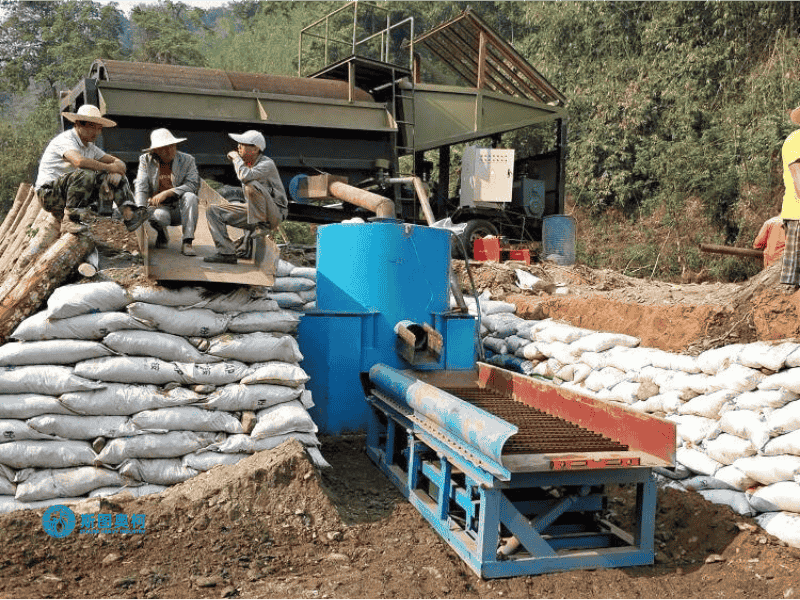

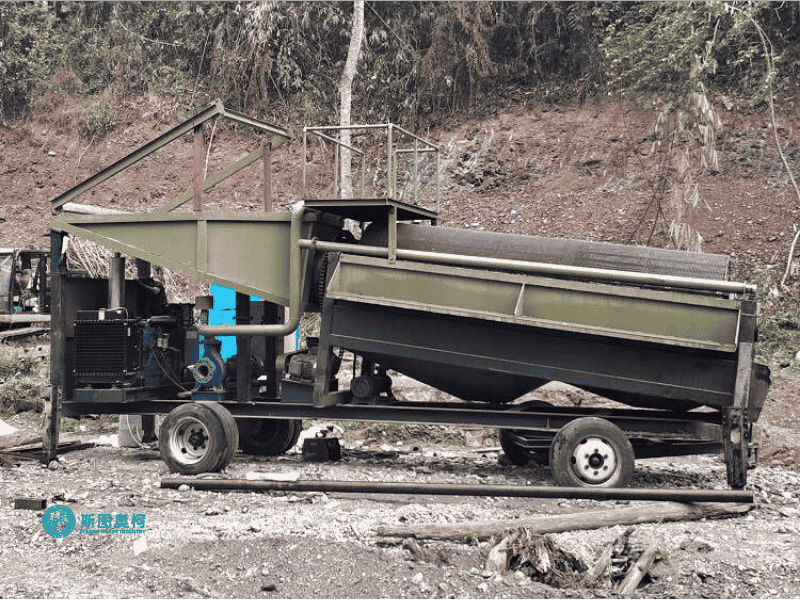

Applications
Models
Model | Capacity (Tons/Hour) | Power (kW) | Weight (kg) | Dimensions (L x W x H, mm) | Water Consumption (m³/h) | Recovery Rate (%) |
PGS-100 | 1-2 | 5.5 | 280 | 2000 x 1000 x 1500 | 1.5-2.0 | 95-98 |
PGS-200 | 2-4 | 7.5 | 350 | 2200 x 1200 x 1600 | 2.0-3.0 | 96-98 |
PGS-300 | 4-6 | 11 | 480 | 2500 x 1400 x 1800 | 3.0-4.0 | 97-98 |
PGS-500 | 6-10 | 15 | 650 | 3000 x 1600 x 2000 | 4.0-5.0 | 97-99 |
