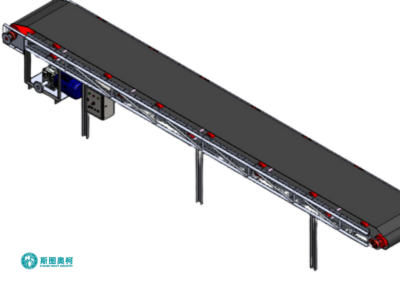

Belt Conveyor
Capacity: 10-20000 TPH
Feeding Size: 0-500 mm
Discharging Size: 0-500 mm
Handling Materials: Ore, tailings, coal, aggregate, etc
Belt conveyor moves bulk materials (ores, grains) horizontally or at inclines up to 30°, handling 10–20,000t/h over 1m–50km distances, modular design suits mining/construction.
Advantages
01.
High Efficiency
Transports up to 20,000t/h over 50km distances with minimal energy loss, outperforming trucks in bulk material logistics.
02.
Flexible Layout
Handles horizontal, inclined (≤30°), or curved paths with modular designs, adapting to complex terrain and space limits.
03.
Low Operating Cost
Energy-efficient motors and minimal labor needs reduce expenses by 40-60% versus haulage vehicles for long-term operations.
04.
Material Versatility
Carries ores, grains, packages, or hot/cold materials (-40°C to 150°C) via specialized belt types (rubber/steel mesh).
How Does A Belt Conveyor Work
1. Material Loading: Bulk goods are fed onto the moving belt through hoppers or chutes, with skirting to prevent spillage (capacity: 10–20,000t/h).

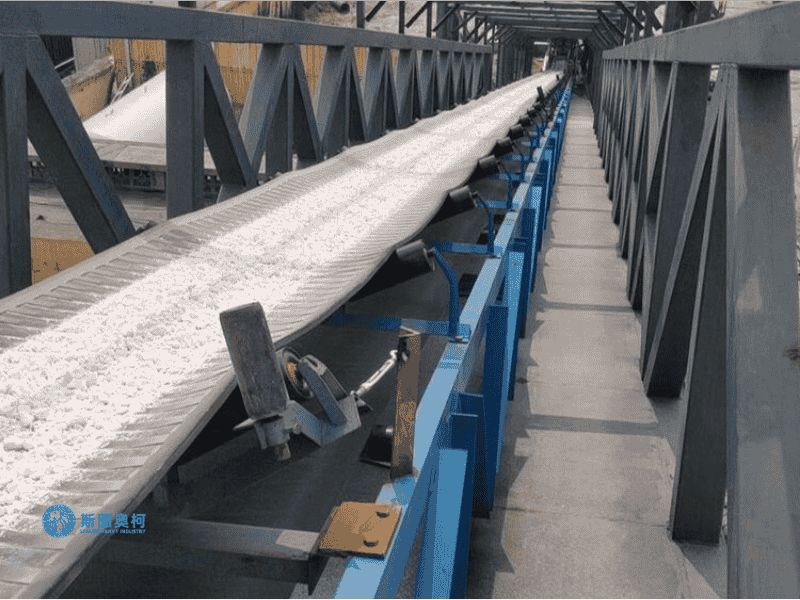

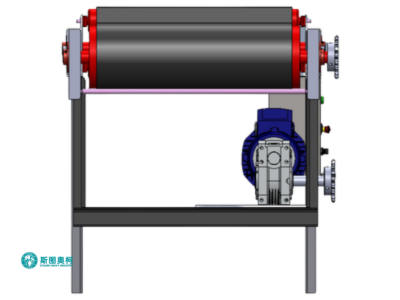

2. Belt Traction: Motor-driven pulleys (head/tail) rotate the belt (0.5–5 m/s), supported by idlers that reduce friction and maintain trough shape.
3. Continuous Transport: Materials adhere to the belt via friction, moving horizontally or at inclines (≤30°) over distances of 1m–50km without interruption.
4. Discharge & Return: Loads are ejected at the head pulley; the empty belt loops back underneath via return idlers, completing the cycle.

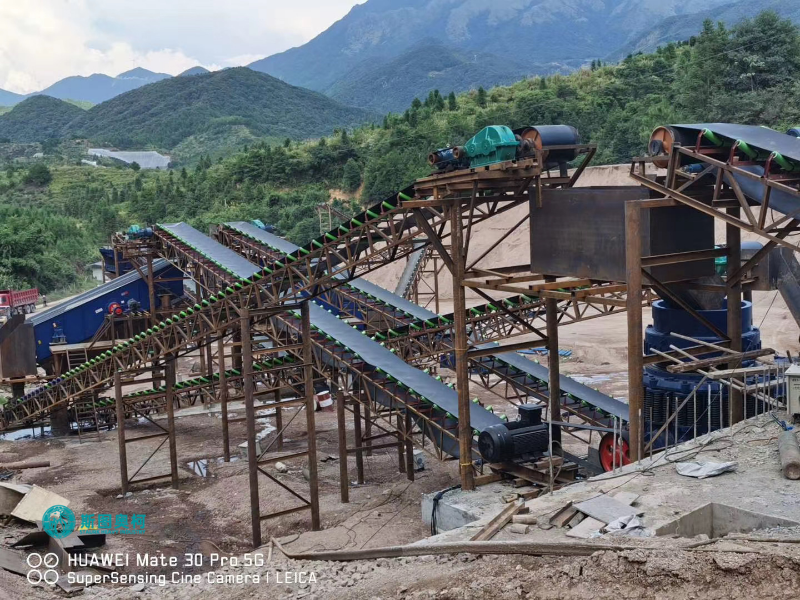

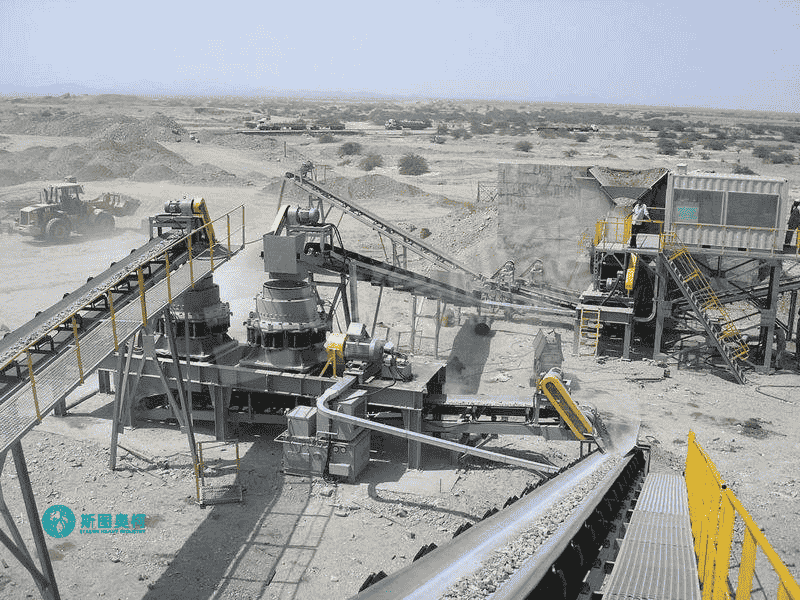

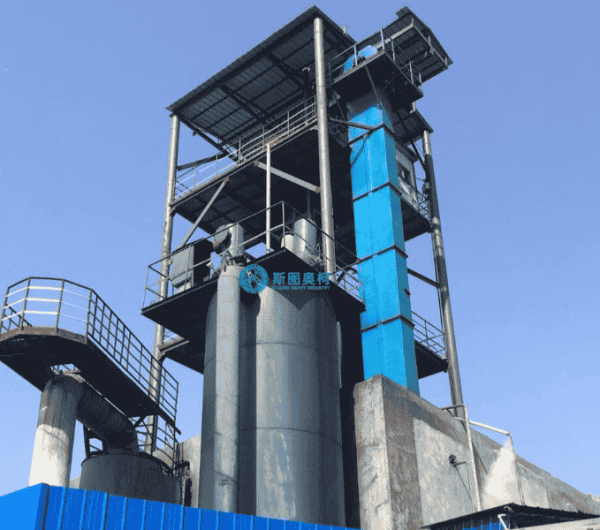

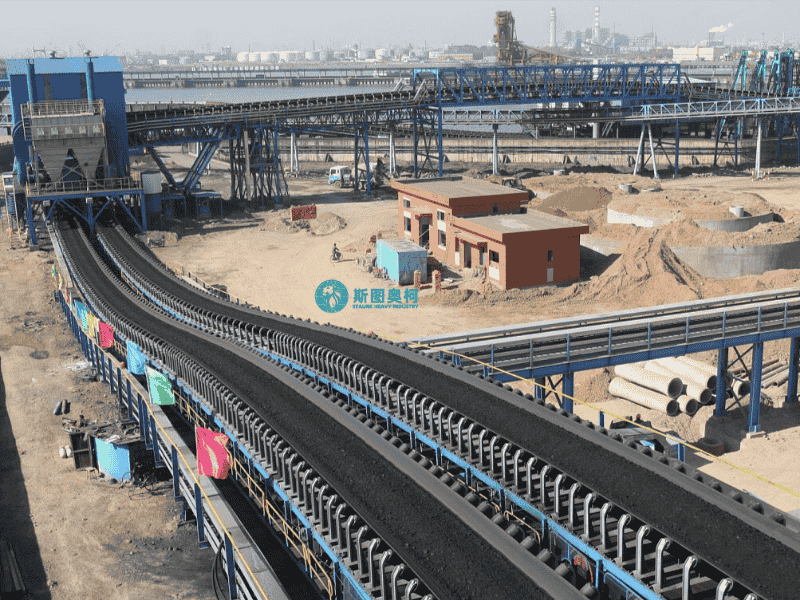

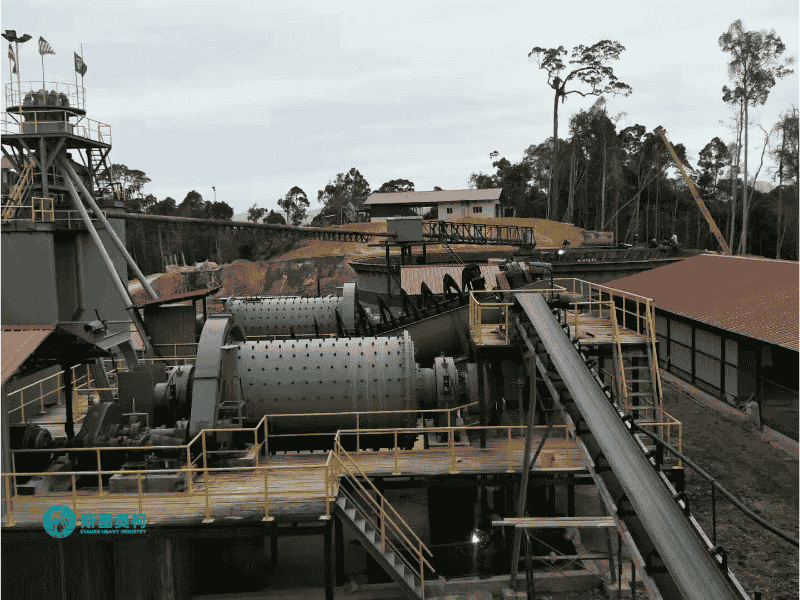

Applications
Models
Model | Capacity (t/h) | Max. Conveying Distance (m) | Belt Width (mm) | Speed (m/s) | Max. Inclination (°) | Power (kW) | Drum Diameter (mm) | Idler Diameter (mm) |
ZSD500 | 87 | 20 | 500 | 1.0 | <20 | 5.5 | 500 | 89 |
ZSD650 | 127 | 20 | 650 | 1.0 | <20 | 7.5 | 500 | 89 |
ZSD800 | 198 | 15 | 800 | 1.0 | <20 | 7.5 | 630 | 89 |
ZSD1000 | 507 | 20 | 1000 | 1.25 | <20 | 11 | 800 | 108 |
ZSD1200 | 742 | 20 | 1200 | 1.25 | <20 | 15 | 1000 | 108 |
ZSD1400 | 1032 | 30 | 1400 | 1.25 | <20 | 22 | 1000 | 133 |
